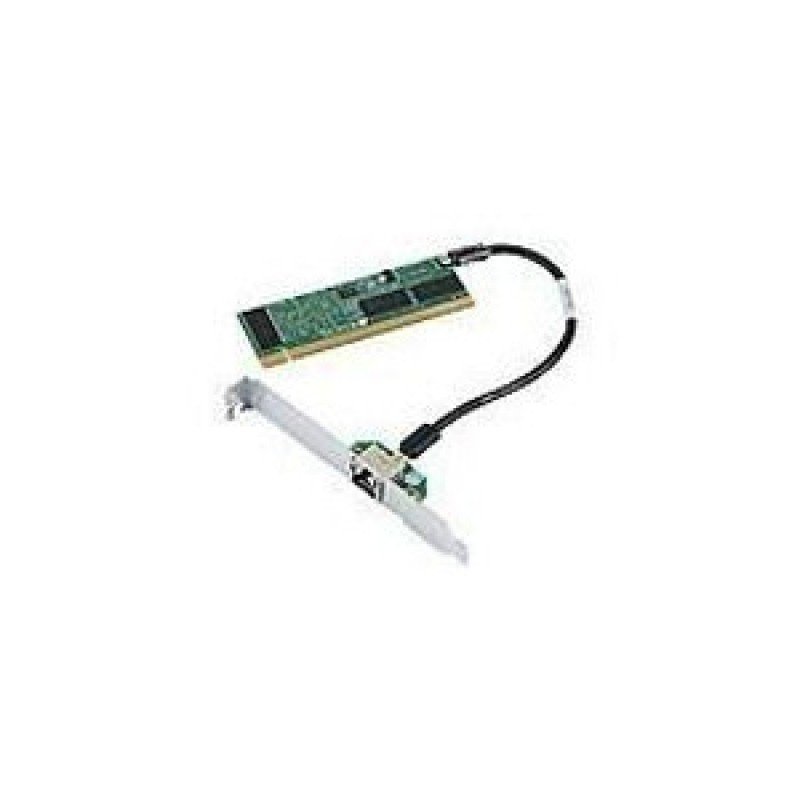

AOC-SIM1U+
- Nhà sản xuất: Supermicro
- Mã sản phẩm/Part No. TM4634 / AOC-SIM1U+
- Tình trạng: Liên hệ đặt hàng
- 2.350.000 VNĐ
Manufacturer Part Number |
| ||||||||
Manufacturer | Supermicro Computer, Inc |
Features
- IPMI with KVM Over LAN
- Serial Over LAN SOL
- VSC 2.0 supports Video Solutions up to 1600 x 1200 @ 60Hz
- Virtual Media Over LAN (Virtual USB Floppy/CD and Drive Redirection)
- LAN Alert-SNMP Trap
- Event Log
- OS Independent
- Hardware Health Monitor
- Remote Power Control
- Management Tools - IPMIView, CLI (Command Line Interface)
- Support RMCP & RMCP + Protocols
Specifications
Main Specifications | |
Height (Rack Units) | 1U and Above |
Dimensions (WxDxH) | 4.6" x 1.3" |
Device Type | IPMI 2.0 with Virtual Media Over LAN & Dedicated LAN |
Expansion / Connectivity | |
Connector on Card | Mini USB with 8" Cable for Dedicated LAN |
Miscellaneous | |
(+) Optional Advanced Feature | KVM-Over-LAN |
Bracket | Standard & Low-Profile |
Compatible Motherboards | PDSM4+, PDSME+, X7DA3, X7DA8, X7DAE, X7DB3, X7DB8+, X7DBE+, X7DB8, X7DBE, X7DB8-X, X7DBE-X, X7DBN, X7DVA-8, X7DVA-E, X7DVL-E, H8SMi-2, H8QM3-2, H8QMi-2, H8DM8-2, H8DME-2 |
