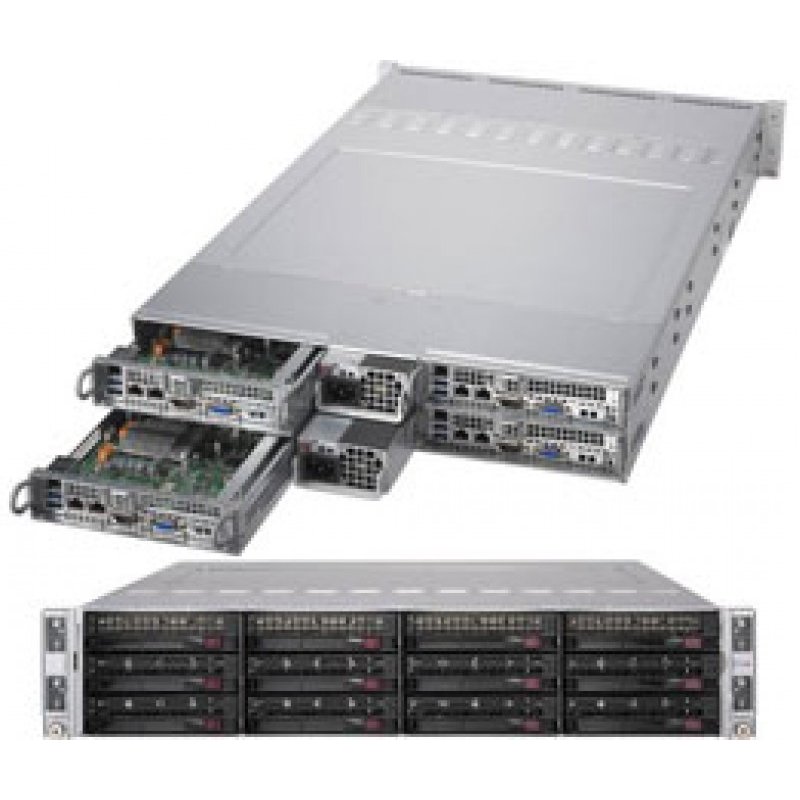

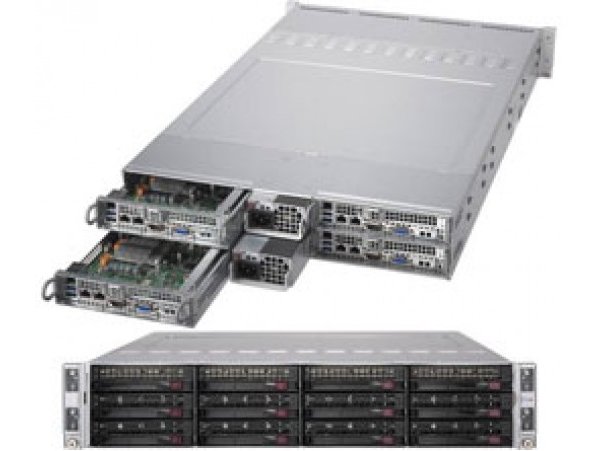

Máy chủ SuperServer SYS-6029TR-HTR
- Nhà sản xuất: Supermicro
- Mã sản phẩm/Part No. TM7609 / SYS-6029TR-HTR
- Tình trạng: Đặt trước
4
Intel Xeon Scalable Processors Gen 1&2 ; 2 x UPI; TDP 70-140W
8 x DIMM; Up to 2TB 3DS ECC DDR4-2933MHz
3 x 3.5" SATA
1600W - 100.760.000 VNĐ
NVKD sẽ liên hệ lại ngay
Thông tin sản phẩm Máy chủ SuperServer SYS-6029TR-HTR
Key Features
- HPC
- Data Center
- Enterprise Server
- Finanical Analysis
- Mission-critical applications
Four hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:
1. Dual Socket P (LGA 3647) support 2nd Gen Intel® Xeon® Scalable processors (Cascade Lake/Skylake)‡
2. 8 DIMMs; up to 2TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM
3. 1 PCI-E 3.0 x16 (LP) slot
4. Dedicated IPMI 2.0 LAN
5. 3 Hot-swap 3.5" SATA3 drive bays
6. 2 SATA DOM + 1 SATA/NVMe M.2 (22110/2280)
7. Up to 1600W Redundant Power Supplies Titanium Level (96%)
Thông số kỹ thuật Máy chủ SuperServer SYS-6029TR-HTR
| Server | |
| Nodes | 4 |
| CPU Sockets | 2 x Socket P (LGA 3647) |
| CPU Support | Intel Xeon Scalable Processors Gen 1&2 ; 2 x UPI; TDP 70-140W |
| RAM | 8 x DIMM; Up to 2TB 3DS ECC DDR4-2933MHz |
| Drive Bays | 3 x 3.5" SATA |
| Form Factor | 2U |
| PCIe | 1 PCI-E 3.0 x16 (LP) |
| I/O Ports | 2 x USB 3.0; 1 x VGA; 1 x COM ; 1 x TPM 2.0 |
| Network Interface | 2 x 1GbE LAN, 1 x IPMI LAN |
| Power Supply | 1600W |
| Redundant Power | Yes |
| System Fan | 4 x 8cm Heavy duty PWM fans with optimal fan speed control |
Tag: multi-node
