111.560.000 VNĐ

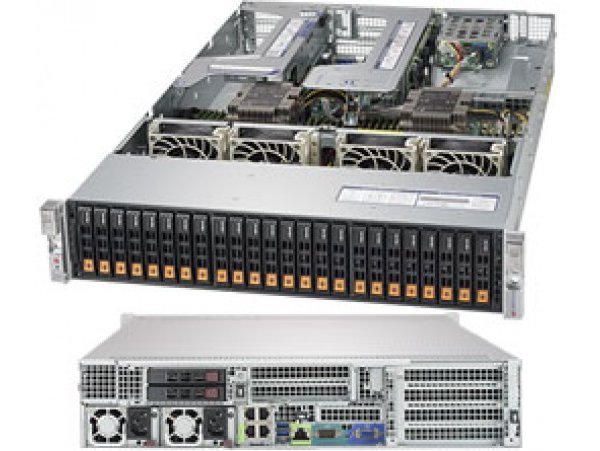

Máy chủ SuperServer SYS-2029U-TN24R4T
Máy chủ SuperServer SYS-2029U-TN24R4T
- Nhà sản xuất: Supermicro
- Mã sản phẩm/Part No. TM5859 / SYS-2029U-TN24R4T
- Tình trạng: Liên hệ đặt hàng
Intel Xeon Scalable Processors Gen 1 & 2; 3 x UPI; TDP 70-205W
24 x DIMM slots, Up to 6TB 3DS ECC DDR4-2933MHz
24 x Hot-swap 2.5"
1600W
24 x NVMe 2.5"- 111.560.000 VNĐ
NVKD sẽ liên hệ lại ngay
Thông tin sản phẩm Máy chủ SuperServer SYS-2029U-TN24R4T
Key Features
• Virtualization
• Hyperconverge Storage
• Cloud Computing
• High End Enterprise Server
1. Dual Socket P (LGA 3647) support 2nd Gen. Intel® Xeon® Scalable processors (Cascade Lake/Skylake)‡
2. 24 DIMMs; up to 6TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM††
3. 2 PCI-E 3.0 x16 slots (FH, 10.5" L), 1 PCI-E 3.0 x8 slot (LP)
4. 4 10GBase-T LAN ports with Intel X550
5. 24 Hot-swap 2.5" drive bays; 24 NVMe (4 hybrid ports - SAS3 via opt. AOC), 2 rear Hot-swap 2.5" drive bays; 2 internal M.2 (1 SATA3, 1 NVMe)
6. 4 Heavy duty 8cm PWM fans
7. 1600W High efficiency (96%) Redundant PSU; Titanium Level
Thông số kỹ thuật Máy chủ SuperServer SYS-2029U-TN24R4T
| Server | |
| CPU Sockets | 2 x Socket P (LGA 3647) |
| CPU Support | Intel Xeon Scalable Processors Gen 1 & 2; 3 x UPI; TDP 70-205W |
| RAM Support | 24 x DIMM slots, Up to 6TB 3DS ECC DDR4-2933MHz |
| Drive Bays | 24 x Hot-swap 2.5" |
| M.2 Interface | 1 x M.2 PCI-E 3.0 x4/SATA3 (2240/2260/2280/22110) via optional riser card 2x M.2 PCI-E 3.0 x4 NVMe (2260/2280/22110) via optional add-on card AOC-SLG3-2M2 |
| RAID Controller | Intel C621 |
| RAID Support | RAID 0, 1, 5, 10 |
| Form Factor | 2U |
| PCIe | 2 x PCI-E 3.0 x16 (FH, 10.5" L); 1 x PCI-E 3.0 x8 (LP) |
| I/O Ports | USB: 3 x USB 3.0 ports ; Video:1 x VGA Connector; Serial Header: 1 x Serial header; DOM: 2 x SuperDOM |
| Network Interface | 4 x RJ45 10 GbE LAN ports; 1 x RJ45 Dedicated IPMI LAN port |
| Power Supply | 1600W |
| Redundant Power | Yes |
| NVMe | 24 x NVMe 2.5" |
| System Fan | 4 x Heavy duty 8cm PWM fans |
Cấu hình tùy chọn
Product
Máy chủ SuperServer SYS-2029U-TN24R4T
111,569,040đ
CPU
x
Intel Xeon Platinum 8153 Processor (16C/32T 22M Cache, 2.0 GHz) - CD8067303408900
90,120,000đ
x
Intel Xeon Platinum 8156 Processor (4C/8T 16.5M Cache, 3.6 GHz) - CD8067303368800
199,056,000đ
x
Intel Xeon Platinum 8160 Processor (24C/48T 33M Cache, 2.1 GHz) - CD8067303405600
136,080,000đ
x
Intel Xeon Platinum 8164 Processor (26C/52T 35.75M Cache, 2.0 GHz) - CD8067303408800
173,688,000đ
x
Intel Xeon Platinum 8168 Processor (24C/48T 33M Cache, 2.70 GHz) - CD8067303327701
167,352,000đ
x
Intel Xeon Platinum 8170 Processor (26C/52T 35.75M Cache, 2.10 GHz) - CD8067303327601
210,384,000đ
x
Intel Xeon Gold 6136 Processor (12C/24T 24.75M Cache, 3.0 GHz) - CD8067303405800
60,672,000đ
x
Intel Xeon Gold 6138 Processor (20C/40T 27.5M Cache, 2.0 GHz) - CD8067303406100
74,232,000đ
x
Intel Xeon Gold 6134 Processor (8C/16T 24.75M Cache, 3.2 GHz) - CD8067303330302
62,880,000đ
x
Intel Xeon Gold 6132 Processor (14C/28T 19.25M Cache, 2.6 GHz) - CD8067303592500
50,088,000đ
x
Intel Xeon Gold 5118 Processor (12C/24T 16.5M Cache, 2.30 GHz) - CD8067303536100
27,936,000đ
x
Intel Xeon Gold 5120 Processor (14C/28T 19.25M Cache, 2.20 GHz) - CD8067303535900
35,280,000đ
x
Intel Xeon Gold 6126 Processor (12C/24T 19.25M Cache, 2.60 GHz) - CD8067303405900
51,888,000đ
x
Intel Xeon Gold 6128 Processor (6C/12T 19.25M Cache, 3.40 GHz) - CD8067303592600
48,048,000đ
x
Intel Xeon Gold 6130 Processor (16C/32T 22M Cache, 2.10 GHz) - CD8067303409000
55,344,000đ
x
Intel Xeon Gold 6140 Processor (18C/36T 24.75M Cache, 2.3 GHz) - CD8067303405200
57,840,000đ
x
Intel Xeon Silver 4210 Processor (10C/20T 13.75M Cache, 2.20 GHz) - CD8069503956302
10,160,640đ
x
Intel Xeon Silver 4214 Processor (12C/24T 16.5M Cache, 2.20 GHz) - CD8069504212601
14,958,720đ
x
Intel Xeon Silver 4216 Processor (16C/32T 22M Cache, 2.10 GHz) - CD8069504213901
19,756,800đ
x
Intel Xeon Silver 4215R Processor (8C/16T 11M Cache, 3.20 GHz) - CD8069504449200
23,377,200đ
x
Intel Xeon Silver 4210T Processor (10C/20T 13.75M Cache, 2.30 GHz) - CD8069504444900
16,242,600đ
x
Intel Xeon Silver 4214Y Processor (12C/24T 16.50M Cache, 2.20 GHz) - CD8069504294401
22,830,720đ
x
Intel Xeon Silver 4210T Processor (10C/20T 13.75M Cache, 2.30 GHz) - CD8069504444900
16,242,600đ
x
Intel Xeon Silver 4209T Processor (8C/16T 11M Cache, 2.20 GHz) - CD8069503956900
14,633,520đ
x
Intel Xeon Silver 4210R Processor (10C/20T 13.75M Cache, 2.40 GHz) - CD8069504344500
10,929,360đ
x
Intel Xeon Silver 4210T Processor (10C/20T 13.75M Cache, 2.30 GHz) - CD8069504444900
16,242,600đ
x
Intel Xeon Silver 4214Y Processor (12C/24T 16.50M Cache, 2.20 GHz) - CD8069504294401
22,830,720đ
x
Intel Xeon Silver 4214R Processor (12C/24T 16.50M Cache, 2.40 GHz) - CD8069504343701
16,106,400đ
RAM
x
Ram 16GB DDR4-2666 1Rx4 LP ECC RDIMM - M393A2K40CB2-CTD
2,996,400đ
x
Ram 32GB DDR4-2666 2Rx4 LP ECC RDIMM - M393A4K40CB2-CTD
4,255,680đ
x
Ram 16GB DDR4-2933 1Rx4 LP ECC RDIMM - M393A2K40CB2-CVF
3,148,320đ
x
Ram 32GB DDR4-2933 2Rx4 LP ECC RDIMM - M393A4K40CB2-CVF
4,666,320đ
HDD
x
HDD Seagate 2.5" 600GB SAS 12Gb/s 10K RPM 256MB
3,801,600đ
x
HDD Seagate 2.5" 600GB SAS 12Gb/s 15K RPM 256MB
6,494,400đ
x
HDD Seagate 2.5" 1200GB SAS 12Gb/s 10K RPM 256MB
5,385,600đ
x
HDD Seagate 2.5" 2400GB SAS 12Gb/s 10K RPM 256MB
9,820,800đ
x
HDD Seagate 2.5" 1800GB SAS 12Gb/s 10K RPM 256MB
7,286,400đ
x
HDD Seagate 2.5" 300GB SAS 12Gb/s 15K RPM 256MB (512N)
4,752,000đ
x
SSD Samsung PM883 240G SATA 6Gb/s V4 TLC VNAND 2.5" 7mm (1.3 DWPD) - MZ7LH240HAHQ
2,798,400đ
x
SSD Samsung PM883 480G SATA 6Gb/s V4 TLC VNAND 2.5" 7mm (1.3 DWPD) - MZ7LH480HAHQ
3,432,000đ
x
SSD Samsung PM883 960G SATA 6Gb/s V4 TLC VNAND 2.5" 7mm (1.3 DWPD) - MZ7LH960HAJR
5,016,000đ
x
SSD Samsung PM883 1.9T SATA 6Gb/s V4 TLC VNAND 2.5" 7mm (1.3 DWPD) - MZ7LH1T9HMLT
9,134,400đ
x
SSD Samsung PM883 3.8T SATA 6Gb/s V4 TLC VNAND 2.5" 7mm (1.3 DWPD) - MZ7LH3T8HMLT
18,638,400đ
x
SSD Intel S4510 Series 480GB, 2.5in SATA 6Gb/s, 3D2, TLC (SSDSC2KB480G8)
3,748,800đ
x
SSD Intel S4510 Series 960GB, 2.5in SATA 6Gb/s, 3D2, TLC (SSDSC2KB960G8)
5,966,400đ
x
SSD Intel S4510 Series 1.92TB, 2.5in SATA 6Gb/s, 3D2, TLC (SSDSC2KB019T8)
9,768,000đ
RAID
Card Raid LSI MegaRAID SAS 9361-8i
9,815,520đ
Card Raid Supermicro AOC-S2308L-L8i & 2x CBL-SAST-0507-01
4,776,000đ
Card Raid Supermicro AOC-S3008L-L8i & 2x CBL-SAST-0593
5,496,000đ
Card Raid LSI MegaRAID SAS 9271-8i
7,752,000đ
Card Raid Supermicro AOC-S2308L-L8e & 2x CBL-SAST-0507-01
4,632,000đ
Card Raid Supermicro AOC-S3108L-H8IR-16DD & 2x CBL-SAST-0593
7,395,840đ
Card Raid LSI MegaRAID SAS 9261-8i
3,744,000đ
Card Raid Supermicro AOC-S2208L-H8iR & 2x CBL-SAST-0507-01
14,208,000đ
Card Raid Supermicro AOC-S3008L-L8e & 2x CBL-SAST-0593
5,400,000đ
Network Card
Network card Supermicro AOC-SG-I2
0đ
Network card Supermicro AOC-STG-i2T (2x RJ45, 10GbE)
8,880,000đ
Network card Supermicro AOC-SGP-i2 (2x RJ45, GbE)
2,616,000đ
Network card Supermicro AOC-STG-B4S (4x SFP+, 10GbE)
10,440,000đ
Network card Supermicro AOC-STGN-i2S (2x SFP+, 10GbE)
8,040,000đ
Network card Supermicro AOC-SGP-i4 (4x RJ45, GbE)
4,800,000đ
Network card Supermicro AOC-SG-I4
0đ
Network card Supermicro AOC-STG-I2 (2x CX4, 10GbE)
6,960,000đ
Network card Supermicro AOC-STGN-i1S (1x SFP+, 10GbE)
3,480,000đ
GPU
NVIDIA Tesla T4 16GB GDDR6 PCIe 3.0
58,303,200đ
NVIDIA Tesla P4 8GB GDDR5 PCIe 3.0
0đ
NVIDIA Tesla M10 32GB GDDR5 PCIe 3.0
0đ
NVIDIA Tesla M60 16GB GDDR5 PCIe 3.0
0đ
NVIDIA Tesla P40 24GB GDDR5 PCIe 3.0
0đ
NVIDIA Tesla V100 16GB CoWoS HBM2 PCIe 3.0
208,736,880đ
NVIDIA Tesla V100 32GB CoWoS HBM2 PCIe 3.0
235,848,480đ
