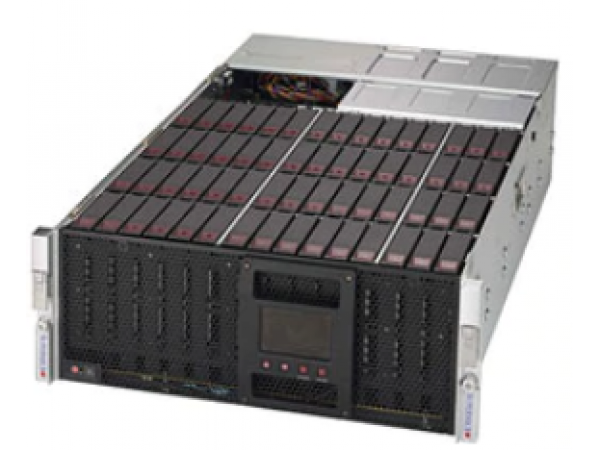

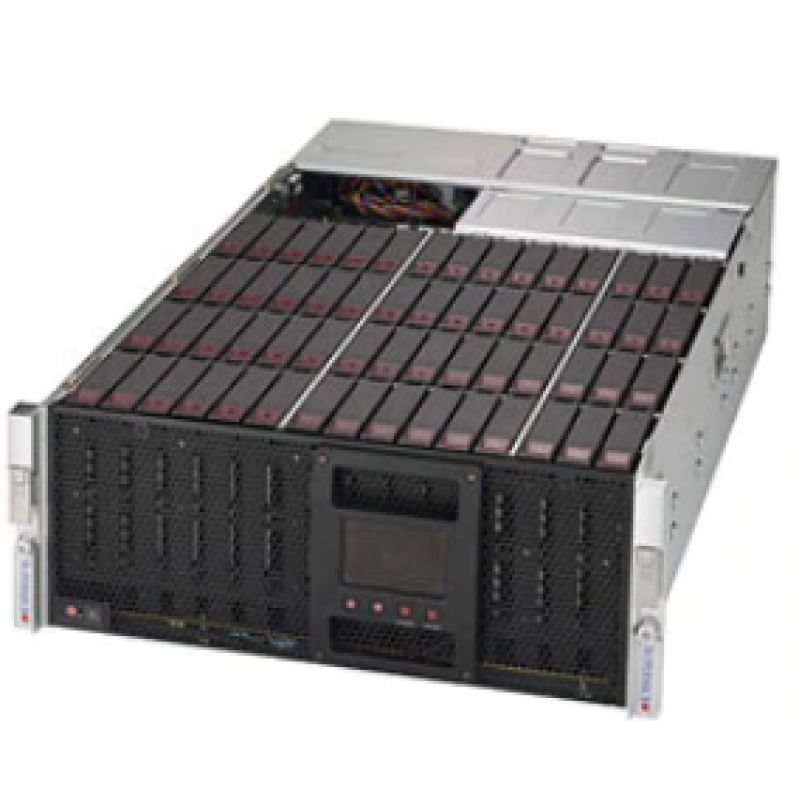

Thiết bị lưu trữ SuperStorage SSG-6049P-E1CR60L
- Nhà sản xuất: Supermicro
- Mã sản phẩm TM7631
- Tình trạng: Đặt trước
Intel Xeon Scalable Processors Gen 1 & 2; 3 x UPI; TDP 70-205W
24 x DIMM slots; Up to 6TB 3DS ECC DDR4-2933MHz; Supports Intel Optane DCPMM
60 x Hot-swap 3.5" + 2 x Hot-swap 2.5" SATA3 (rear)
2000W
6 x NVMe 2.5" (optional)- 157.140.000 VNĐ
NVKD sẽ liên hệ lại ngay
Thông tin sản phẩm Thiết bị lưu trữ SuperStorage SSG-6049P-E1CR60L
Key Features
- Corporate Database
- Database Processing & Storage
- Enterprise Server
- HPC, Data Center
- iSCSI SAN
- Dual Socket P (LGA 3647) support 2nd Gen. Intel® Xeon® Scalable processors (Cascade Lake/Skylake)‡
- 24 DIMMs; up to 6TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM††
- 2 PCI-E 3.0 x16, 1 PCI-E 3.0 x8, 1 SIOM card support (flexible networking)
Note: must bundle with Network card - 60 Hot-swap 3.5" SAS3/SATA3 drive bays with SES3;2 rear Hot-swap 2.5" drive bays; optional 6 NVMe bays
- Broadcom 3008 SAS3, IT MODE
- Server remote management: IPMI 2.0/ KVM over LAN / Media over LAN
- 5 Hot-swap 8cm rear exhaust PWM fans
- 2000W Redundant Power Supplies Platinum Level (94%)
Thông số kỹ thuật Thiết bị lưu trữ SuperStorage SSG-6049P-E1CR60L
| Server | |
| CPU Sockets | 2 x Socket P (LGA 3647) |
| CPU Support | Intel Xeon Scalable Processors Gen 1 & 2; 3 x UPI; TDP 70-205W |
| RAM Support | 24 x DIMM slots; Up to 6TB 3DS ECC DDR4-2933MHz; Supports Intel Optane DCPMM |
| Drive Bays | 60 x Hot-swap 3.5" + 2 x Hot-swap 2.5" SATA3 (rear) |
| RAID Controller | Broadcom 3008 AOC |
| RAID Support | RAID IT Mode |
| Form Factor | 4U |
| PCIe | 2 x PCI-E 3.0 x16, 1 xPCI-E 3.0 x8, 1x SIOM card |
| I/O Ports | USB: 2 x USB 3.0 ports (rear) 1 x Type A ; Video:1 x VGA Connector; Serial Header: 1 x Fast UART 16550 port / 1 x Header |
| Network Interface | flexible networking via SIOM card; 1 x RJ45 Dedicated IPMI LAN port |
| Power Supply | 2000W |
| Redundant Power | Yes |
| NVMe | 6 x NVMe 2.5" (optional) |
| System Fan | 5 x Hot-swap 8cm rear exhaust PWM fans |
Tag: storage
